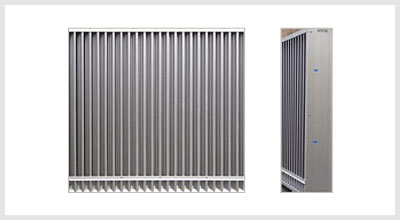

Frame of Sand Louver

- Extruded aluminum alloy of Width 203mm, Thickness 3mm



Wing of sand Louver

- Extruded aluminum alloy of Width 203mm, Thickness 2mm, Assembly spacing 50mm



The maximum dimensions of the sand louver

- If you use the connection frame, no size limit.



If you don't use connection frame, the maximum size of sand louver

- W3, 150mm×H1,800mm×H3,150mm

(To facilitate the transportation and installation at site, manufacture sand louver' maximum size less than above size.)



The minimum size

- 300W×300H



Installment

- For opening dimension to install sand louver, apply 6mm bigger than actual louver dimension(See installation section)



Sand Louver finish

- Silver anodaijing



#2-Mesh Screen

- Stainless steel or aluminum of 12mm diameter
